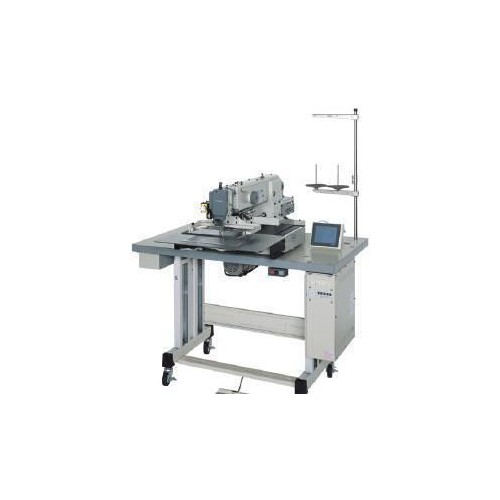

 | | | Stitch type | Single needle, lockstitch | | Sewing area | (X)300mm x (Y)200mm | | Max. sewing speed | 2,300 rpm
(Sewing speed may be limited by the operation, material or clamp mass.) | | Sewing speed selection | 200 - 2,300 rpm (10 steps variable) | | Feeding system | Intermittent or continuous | | Stitch length | 0.1 - 12.7mm
(minimum resolution 0.1mm) | | Pattern data storage media | Internal memory or
3.5" 2HD Floppy disc | | Max. number of stitches | 8,000/pattern | | Scale-up/down function | 10 - 200% for each X. & Y. axis
(0.1% increment/step) | | Hook | Double size rotary hook | | Needle | DPx17#18(Standard) | | Work holder lift | Max. 25mm | | Stepping foot lift | Max. 18mm | | Stepping foot stroke | 4 - 10mm(Adjustable) | | Main driving motor | Limi-servo X550W | | Power | 220-240V, 1 or 3phase, 0.7KVA(standard)
110-120V, 380-415V, 0.7KVA(optional) | | Measurement | W1,200mm D920mm H1,170mm | | Mass | 136kg |
|
